The polygon top tent roof beam connects a plurality of aluminum alloy beam together and composed of a polygon.
The polygon top tent series clear span of the is 10m, 12m, 15m, 18m, 20m, 25m, 30m, 40m, 50m, 60m, the height of the 40m, 50m, 60m is 5m, bay distance is 5m, the length can be increased or decreased by 5m without limit.

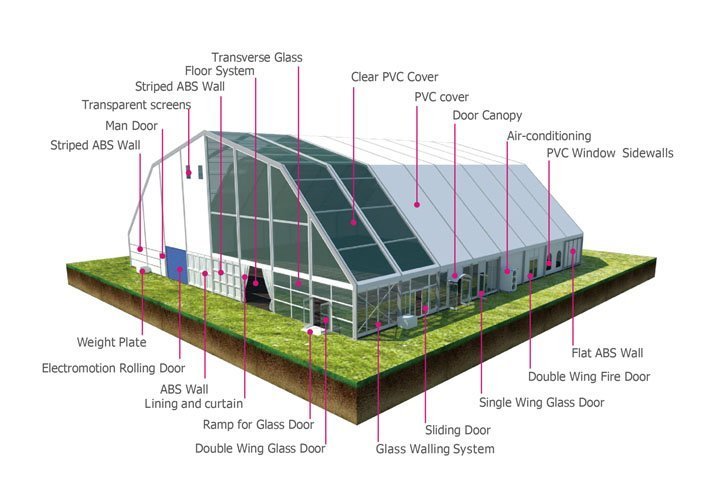

Optional accessories: clear windows, ground anchors, weight plate, glass wall system, ABS hard wall system, rolling door, man door, air conditioner, lining, curtain and so on.
Frame adopt reinforced aluminum alloy 6061/T6 extruded profile, surface anodized finish. The fabric is double PVC coated polyester, 850g/sqm,block-out waterproof, UV resistant, fire retardant and self-clean ability under European Standard M2.
Polygon tent designed with the advanced idea and firm structure. The wind resistance is 100km-120KM/hour, suitable for large concert, storage, large exhibition, big party and so on.
It is the most special design and hot sales aluminum tent product in 2014;
|Clear-span Width||Eave Height||Top Height||Bay Distance|
|10 m / 32.81 feet||4 m / 13.12 feet||7.16 m / 23.49 feet||5 m / 16.40 feet|
|12 m / 39.37 feet||4 m / 13.12 feet||7.4 m / 24.28 feet||5 m / 16.40 feet|
|15 m / 49.21 feet||4 m / 13.12 feet||8.75 m / 28.71 feet||5 m / 16.40 feet|
|18 m / 59.06 feet||4 m / 13.12 feet||9.15 m / 30.02 feet||5 m / 16.40 feet|
|20 m / 65.62 feet||4 m / 13.12 feet||9.42 m / 30.91 feet||5 m / 16.40 feet|
|25 m / 82.02 feet||4 m / 13.12 feet||11.72 m / 38.45 feet||5 m / 16.40 feet|
|30 m / 98.43 feet||4 m / 13.12 feet||13.2 m / 43.31 feet||5 m / 16.40 feet|
|40 m / 131.23 feet||4 m / 13.12 feet||15.6 m / 51.18 feet||5 m / 16.40 feet|
|50 m / 164.04 feet||5 m / 16.40 feet||16 m / 52.49 feet||5 m / 16.40 feet|
|60 m / 196.85 feet||5 m / 16.40 feet||17 m / 55.77 feet||5 m / 16.40 feet|
