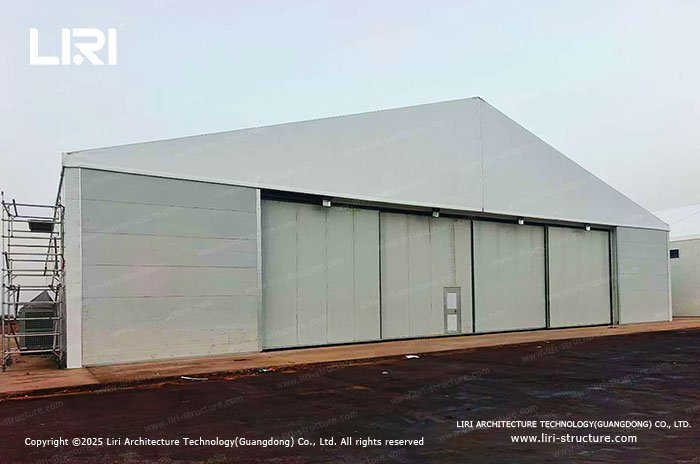

The hangar tent is the latest tent series developed by Zhuhai Liri Tent Technology Co., applying to the Naval Aviation and Civil Aviation as temporary or permanent hangars for light aircraft.
The main frameworks are manufactured with hard-pressed extruded anodized aluminum alloy. The covers and sidewalls are made of flame retardant double PVC coated polyester textile strictly based on the European standard DIN 4102B1, M2.
Various dimensions of hangar tents can be manufactured according to the different size of aircraft. The main feature of the frameworks is that it is designed specially based on high degree configuring film insulated PVC textile. Large span flexible lifting doors and sandwich panel walls form a unique Liri hangar tent.

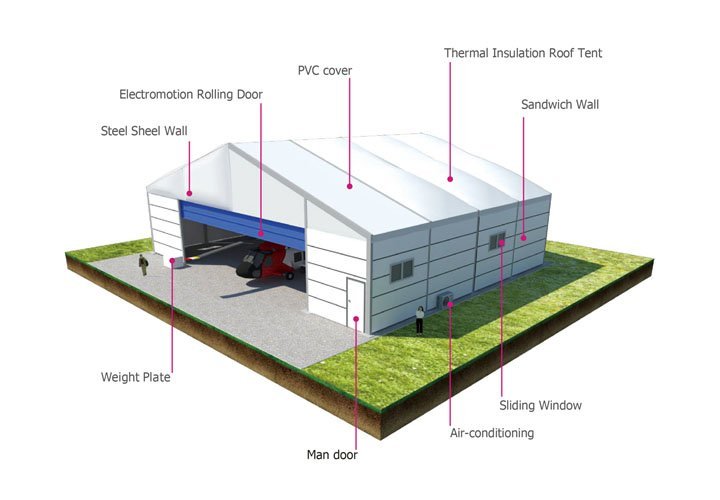

Multiple kinds of optional accessories can be selected for different functions, such as film insulated roof cover, insulated sandwich panel walls, large span flexible lifting doors, colorful steel walls, LED lighting, working doors, rolling doors, flooring systems, rain gutter, fire-fighting systems, ventilation systems, and so on.
The Aircraft Hangar Tent is durable and sturdy which able to resist up to 120KM/hour (0.7KN/m2 wind loading). It’s small transport dimension, easy assembling and disassembling characters make this tent to be the best choice for hangars of Naval Aviation and Civil Aviation and other enterprises.

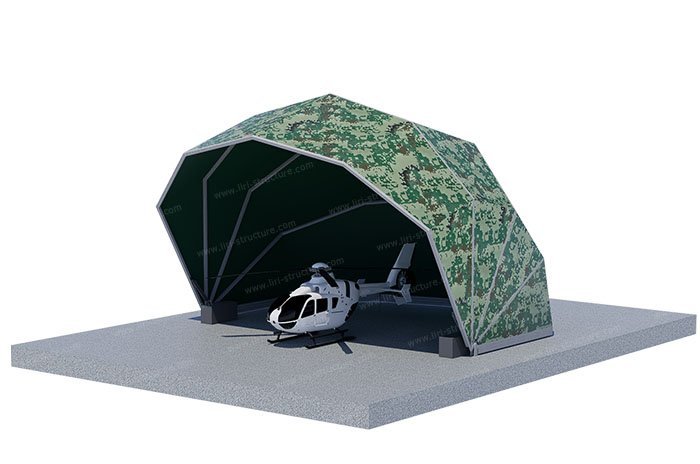

After the new designs of the flexible gate and push-pull hangar tent, in 2015 Liri Tent has developed the polygonal eyelid hangar tent. This structure adopts aluminum frame, which is sturdy and durable to resist wind loading 120km/h (0.7kn/m²) and snow loading 25-75 kg/m². Especially we add the driving system to control the movement of the frame unit and the closure and open of the PVC fabric so that we can achieve the auto operation of the door like the eyelid.
Compared with the permanent hangar structures, eyelid hangar tent belongs to the temporary building, which is very easy to dismantle and install, and all components can be shipped by plane after dismantle. When parking the plane, the installation can be completed by the crew only. Also due to the good adaptability to different terrain, the hangar tent can be set up on both concrete ground and grassland, even for temporary grounds, which reduce the difficulty of construction on site and shorten the installation time. This hangar tent is very suitable to use as the temporary or permanent garage for air forces and the civil aviation aircraft.
The size of eyelid hangar tent is not fixed, so we can customize the size by dimensions of airplanes and demands of buyers and choose different accessories for various applications. This innovative outdoor hangar tent is flexible, movable, convenient, and cost-effective.
This product has received national patents, patent number: 201620180982.1
|Clear-span Width (m)||Eave Height (m)||Top Height (m)||Bay Distance (m)||Main Profile (mm)|

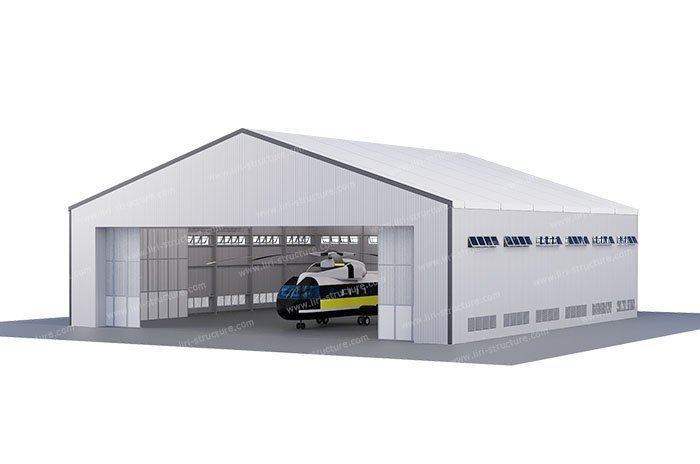

|Sliding Door Opening Hanger Tents||10-60||4-8||5.5-18||5||204x120x4 / 256x121x5 / 300x120x5 / 350x120x5 / 400x120x6/7|
|Eyelid Opening Hanger Tents||10-20||4-8||5.8-8.1||5||204x120x4 / 256x121x5 / 300x120x5 / 400x120x6/7|
|Flexibile Shutter Door Opening Hanger Tents||10-60||4-8||5.5-18||5||204x120x4 / 256x121x5 / 300x120x5 / 350x120x5 / 400x120x6/7|
