Cube Structure Tent

Width: 10m - 30m

The roof of the tent is made by thermally insulated PVC fabric, with heat insulation, preservation, and thermostatic effect.

SKU: CS

Inflatable Cube Tent Structures

Cube structure tent product has obtained the national patent, patent number: thermoZL201520503410.8

The clear span of the Thermo Roof Cube Tent series is 10m 15m 20m 25m 30m.
The characteristics of thermal roof cube tent structure are as below:
1. The roof of the tent is made of thermally insulated PVC fabric, with heat insulation, preservation, and thermostatic effect.

2. The roof is flat with 7° roof pitch. It is worth mentioning that there is a tippet of the tent, after improvement and innovation, we increase the space for the banner advertising, providing our customer with the platform to print Ads on the tents.

The Thermo Roof Cube Tent series is very stable and durable, and the wind loading can be 100km/hour, o.5kn/㎡, easy to assemble and disassemble, and easy to store. It’s widely used for all kinds of outdoor temporary events, and it is your good optional solutions for temporary buildings.

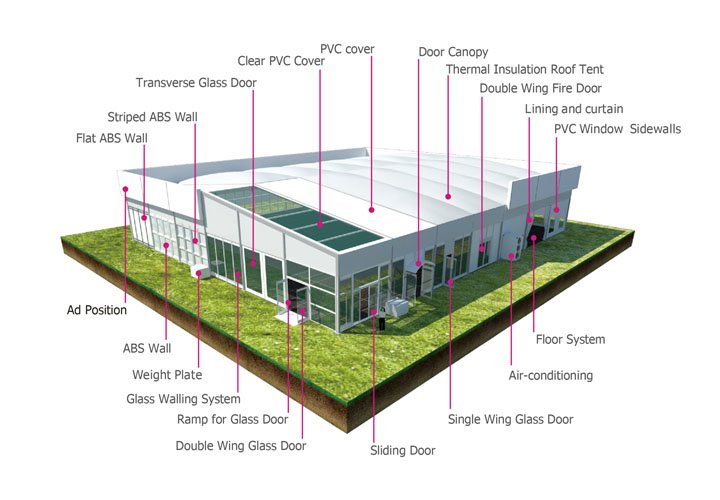

There are many accessories for the Thermo Roof Cube Tent, such as sidewalls with clear PVC church windows, ground anchor, lining and curtain, glass wall system, ABS hard wall system,

sandwich wall system, steel sheet wall system, glass doors, sliding doors, electromotive rolling door system, transparent roof cover and sidewalls, and flooring system etc.

Colors:

  • TF 01 White (Opaque) 850g/m² RAL 9016

  • TF 02 White (Translucent) 650g/m² RAL 9016

  • TF 03 White (Varnish PVDF, Opaque) 850g/m² RAL 9016

  • TF 04 White Face-Back Black 750g/m² RAL 9016

  • TF 05 Transparent PVC 650g/m² RAL 0000

  • TF 06 Silver Face-Back White 850g/m² RAL 7045

  • TF 07 Beige (Opaque) 750g/m² RAL 1015

  • TF 08 Sand Yellow (Varnish Both Sides PVDF,Opaque) 750g/m² RAL 1002

  • TF 09 Yellow (Translucent) 650g/m² RAL 1021

  • TF 10 Blue (Opaque) 850g/m² RAL 5015

  • TF 11 Red (Opaque）850g/m² RAL 3031

  • TF 12 Army Green (Opaque）850g/m² RAL 6002

  • TF 13 Black 750g/m² RAL 9005

  • TF 14 Orange Face-Back White 850g/m² RAL 2009

  • TF 15 Sky Blue (Opaque) 850g/m² RAL 5012

Cube Tent Framework Profile

  • Upright Support Roof Beam

  • Gable Pole

  • Eave Purlin Ridge Purlin

  • Intermediate Purlin

  • Eave Tension Rail

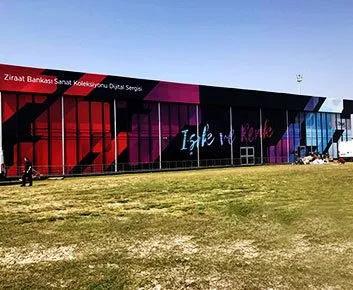

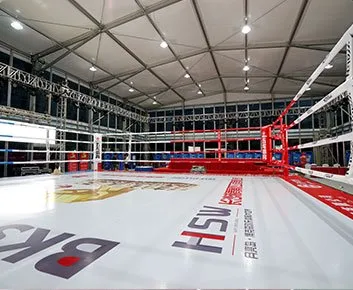

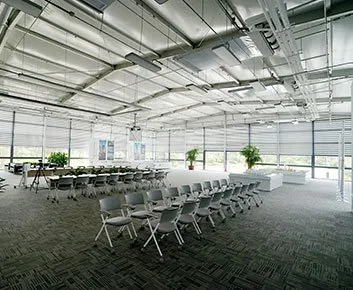

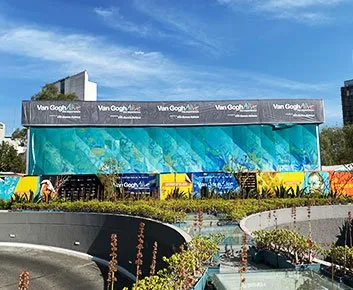

Cube Tent Applications

Cube Tent Video

Clear-span Width Eave Height Ridge Height Bay Distance
10 m / 32.81 feet 5 m / 16.40 feet 5.58 m / 18.31 feet 5 m / 16.40 feet
15 m / 49.21 feet 5 m / 16.40 feet 5.89 m / 19.32 feet 5 m / 16.40 feet
25 m / 82.02 feet 5 m / 16.40 feet 6.5 m / 21.33 feet 5 m / 16.40 feet
30 m / 98.43 feet 5 m / 16.40 feet 6.8 m / 22.31 feet 5 m / 16.40 feet


  • Tent Flooring

  • Air-conditioned Tents

  • Tent Furniture

  • Tent Lining And Curtain

  • Sandwich Wall For Tent

  • Tents ABS Wall

  • Tent Glass Wall

  • PVC Transparent Window

  • Glass Door For Tent

  • Rolling Door For Tent

  • Single Door For Tent

  • Louver For Tent

  • Serge Ferrari Fabric

  • Transparent Fabric For Tent

  • Tent Digital Printing

  • Engraved fabric

  • Anti Collision Column

  • Outdoor Bleachers

  • Bracket For Tent Accessories

  • Electric Generator For Tent

  • Long Nail For Tent

  • Ringlock Scaffolding Flooring

  • Tent Sliding Glass Window

  • Tent Wind Curtain

  • Water Channel For Tent

  • Weight Plate For Tent
