The geodesic dome tent is getting more and more popular. The tent structure adopts the high-quality steel and PVC coated polyester fabric.
The simple design marquee tent is too common for your event? Do you want a special design outdoor space? Now LIRI develops the latest tent product—The Geodesic Dome Tent which brings you a new experience.
Full of Visual Impact
Sense of Science & Technology Experience
Fast Installation and Dismantle
Multiple Application and Functions
Geodesic Dome Tent is not offering a unique shape, but also it has strong and sturdy structure. Based on the most stable triangles in the geometry, formed by the combination of a sphere, but the spherical interior does not need any object to support, which is a robust and solid structure.
The Geodesic Dome Tent adopts special high-strength steel pipes, which is under galvanized or paint processing, and it can withstand the level of 11 wind, and also in line with Australia DIN410231, M2 standard. Also, Liri adopts the high-quality PVC fabric to make the roof covers, never fade, anti-mildew, and block out, and it is dustproof, windproof, keep warm and so on. In addition, there are also a variety of optional accessories available, such as air conditioning, VIP floor, ceiling interior, transparent roof covers, glass doors, gorgeous lighting, sound system and so on.
|Structure Material||Steel Q235|
|Membrane Material||Double-Sided PVC Coated Polyester Fabric|
|Membrane Weight||650 g / m2 (non-opaque)
850 g / m2 (opaque)
|Certifications||Class B1 and M2 of fire resistance according to DIN 4102|
|Transparent front||White, opaque PVC fabric with the detachable, exchangeable clear, transparent front part, our most versatile solution|
|Blackout||White, opaque PVC fabric with the detachable, exchangeable white, opaque front part, ideal for darkening out the interior|
|Transparent membrane||Completely transparent PVC cover, ideal for night events, giving you the possibility to create magical light effects|
|Branded membrane||Fully color printed fabric or printed detachable front part, ideal to put your brand’s message across|
|Open Dome||The unique 2-in-1 solution that combines the classic Freedom shape with a completely innovative mobile stage system|
|* Opaque PVC fabric can be replaced with non-opaque, single layer cover, perfect for creative lighting effects visible from the outside|

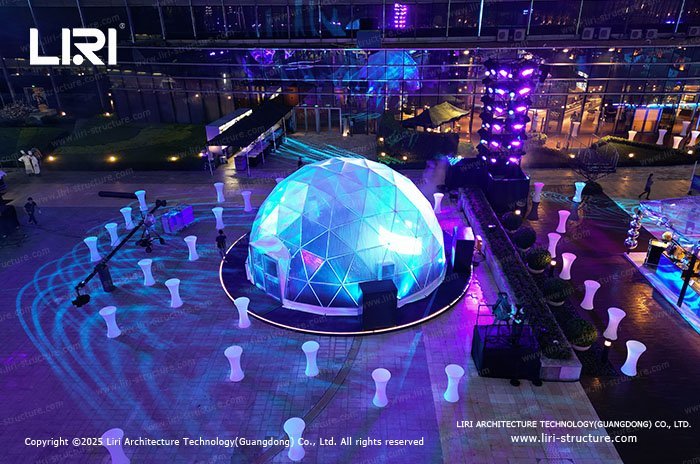

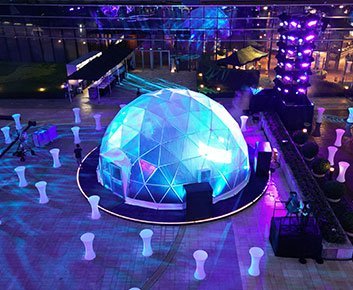

Geodesic Dome Tent also can be used with all clear roof covers, it makes the whole structure bright and transparent with sunlight. And it shines the most colorful lighting effect to all the guests. No matter it is for large-scale events or celebrations, exhibitions with big large capacity space, the Geodesic Dome Tent can be to meet all your requirements.
Geodesic Dome Tent adopts the modular structure, easy to set up, and all the PVC covers can be folded. The packing is small and light weight frames after dismantled, it can effectively save the labor time and manpower costs. This is very good too for rapid installation.
|Diameter||Ceiling Height||Floor Area||Frame Pipe Size||Capacity|
|5 m / 16.40 feet||2.9 m / 9.51 feet||19.6 m²||Φ 26 mm / 1.02 inch||15-35 people|
|12 m / 39.37 feet||6 m / 19.69 feet||113 m²||Φ 33 mm / 1.30 inch||55-105 people|
|15 m / 49.21 feet||6.72 m / 22.05 feet||176.6 m²||Φ 33 mm / 1.30 inch||110-230 people|
|20 m / 65.62 feet||10 m / 32.81 feet||314 m²||Φ 38 mm / 1.50 inch||250-550 people|
|30 m / 98.43 feet||13 m / 42.65 feet||706.5 m²||Φ 48 mm / 1.89 inch||650-1200 people|
|40 m / 131.23 feet||15 m / 49.21 feet||1256 m²||Φ 51 mm / 2.01 inch||1800-2500 people|
|50 m / 164.04 feet||20 m / 65.62 feet||1962.5 m²||Φ 48 mm / 1.89 inch||3100-3800 people|
|60 m / 196.85 feet||25 m / 82.02 feet||2826 m²||Φ 51 mm / 2.01 inch||4500-5200 people|
|3m to 60m span width available to be customized.|
