Large Tent

Width: 30m - 60m

SKU: LH Category:

The clear span of the Large Tent is a modular structure that can be increased or decreased in the bay distance of 5m according to the client’s requirements. The main frameworks (upright support and roof beam) are manufactured with high impact extruded anodized aluminum (6061/T6). The PVC covers use PVC-coated polyester textile and flame retardance which is based on the European standard DIN 4102B1, M2.

There are also many different styles sand shapes like square, hexagonal, octagonal, decagonal, dodecagonal, and double decker. All clear span large tent structures are available with a complete range of accessories. These accessories are sidewalls with clear windows, ground anchors, weight plate, lining, glass wall system, and ABS hard wall system.

Large Tent Size:

Clear-span Width (m) Eave Height (m) Top Height (m) Bay Distance (m) Main Profile (mm)
30 4 8.9 5 350x120x5
40 4 10.5 5 350x120x5
45 4 11.38 5 350x120x5
50 4 12 5 350x120x5
60 4 13.6 5 350x120x5

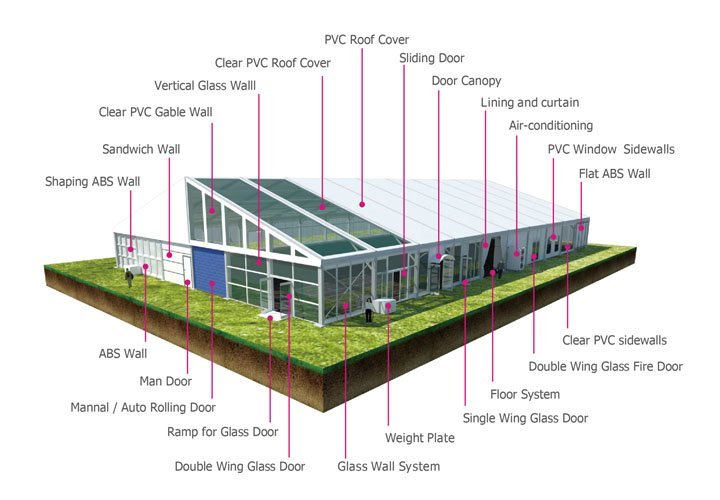

large tent accessories
